    1U Management 4 Channels SFP+ to SFP+ OEO Optical Converter Card ITU-I Standard

    Ask Lasest Price
    Brand Name : Fiberroad
    Model Number : FR8000-OTUXXXX
    Payment Terms : T/T, Western Union
    Certification : CE, FCC
    Price : Pls send request details
    Delivery Time : 2-3 workdays
    Supply Ability : 5000pcs/Month
    • Product Details
    • Company Profile

    1U Management 4 Channels SFP+ to SFP+ OEO Optical Converter Card ITU-I Standard

    1U Management 4 Channels SFP+ to SFP+ OEO Optical Converter Card ITU-I Standard​

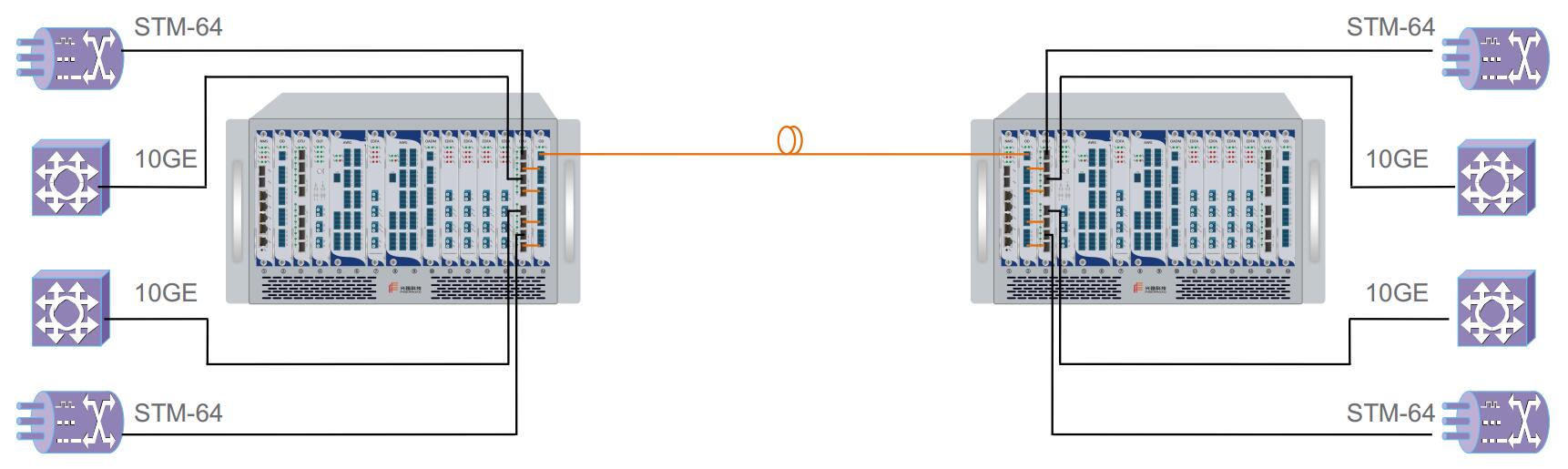

    FR8000-OTU310QS2S SFP+ Quad Transponder module is a single slot module that incorporates 8 independent SFP+ based 10Gbps ports. It combines software selectable data rates and advanced Small Form-factor Pluggable (SFP+) optical transceivers supporting the latest high-speed protocols. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion, Wave Division Multiplexing (WDM), and Optical Add/Drop Multiplexing (OADM).



    Performance Parameters

    System ParametersTechnical Indicators
    Center WavelengthCompliance with ITU-I standard
    Data Rate

    FC: 8.5Gbps /10G

    SONET OC-192, STM-64 (9.953Gbps)

    10G WAN (10Gbps)10G LAN (10.31Gbps)

    10G POS

    Optical Interface Type8 * SFP+
    NMSTELNET, SNMP, WEB
    SizeOTU Module26.5(W)× 195(H)× 252(D)mm
    1-slot Chassis482.6(W)x350(D)x43.6(H)mm
    8-slot Chassis482.6(W)x360(D)x109(H)mm
    16-slot Chassis482.6(W)x360(D)x261.6(H)mm
    EnvironmentOperating Temperature-10℃ ~ 70℃
    Storage Temperature-40℃ ~ 80℃
    Relative Humidity5% ~ 95% (Non-condensing)
    Power Consumption≤15W

    Dual Converter/Repeater/Transponder


    Ordering Information

    ModelDescriptionRemark
    FR8000-OTUQS2S4-channel SFP+ to SFP+ OEO Converter CardSFP * 8 optical module optional
    FR8000-CH11U chassis1U, 2Fans, AC/DC power module optional
    FR8000-CH166U chassis6U, 4Fans, AC/DC power module optional
