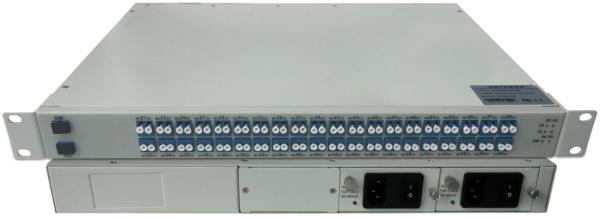

Thermal AWG 1U Mux or Demux of 48 Channel Wavelength of C-Band based on DWDM

Fiberroad FR8000-TAWG40 is a thermal-type forty-channel 100GHz DWDM multiplexer and de-multiplexer (MUX &DeMUX) in a single 1U solution. It combines standard 100GHZ DWDM ITU grid channels 21 through 60, and it may be used in pairs or in combination with any other vendor’s ITU grid-compliant DWDM MUX/DeMUX.

This component is designed for use within the C -band release of DWDM system. AWG device uses thermal-type thermal arrayed waveguide grating module with a unique package design is based on a silicon substrate planar waveguide optical path (PLC) grating technology, the key modules, reduce power consumption, the Ad Hoc Working Group kit, use reliable thermal plastic , low thermal conductivity and precise working temperature control, accurate channel coupling, low insertion loss, high channel isolation and high stability.

Product Features

Channel spacing 100GHZ (0.8 nm) up to 48 channels can be multiplexed;

Low insertion loss, insertion loss ≤5dB, typ 4.5dB

High channel isolation, adjacent isolation ≥25dB; non-adjacent isolation ≥35dB

High stability, dual hot-swappable power supply, 1 +1 protection;

Perfect indicator status;

Applications

• Wavelength Routing
• Fiber Optical Amplifier
• CATV Fiber Optical System
• DWDM Metro and Long Haul Networks

Optical Specifications

Channels List:Passbands for 40 channel TAWG
