    Mini 10/100 Base-TX to 100 Base-FX Media Converter

    Ask Lasest Price
    Brand Name : FIBERROAD
    Model Number : FR-2201
    Certification : CE
    Payment Terms : 100% t/t in advance, Western Union, T/T
    Supply Ability : 5000pcs/Month
    Delivery Time : 2-3 workdays
    Price : Pls send request details
    • Product Details
    • Company Profile

    Mini 10/100 Base-TX to 100 Base-FX Media Converter

    Mini 10/100Base-TX to 100Base-FX Media Converter

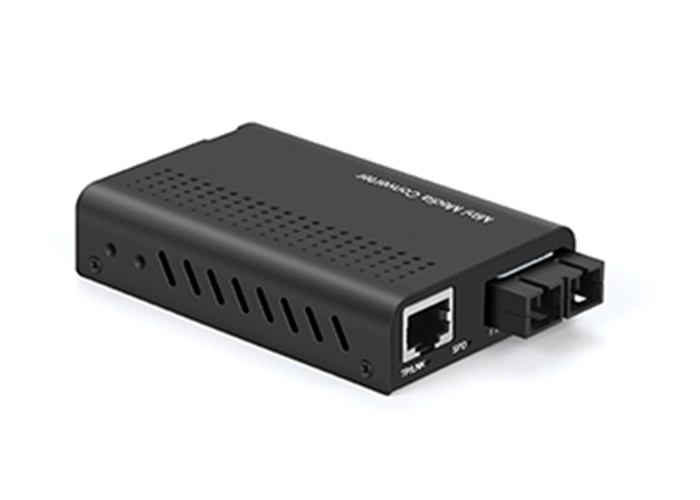

    FR-2201 is a Fast Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with its small size, it is ideal for locations where space is limited. .10/100Base Fiber Media Converter,SFP Fiber Media Converter, Options in singlemode dual fiber, multimode dual fiber and singlemode single fiber. We also supply Media Coverter Chassis, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters.


    Key Features

    - Unit and Port LEDs allow for quick status information
    - Auto-Negotiation
    - Fixed Full-Duplex on fiber
    - Auto-MDI/MDIX
    - Automatic Link Restoration
    - Connect to legacy network equipment
    - Eliminate Collision Domains
    - 10/100Base-TX UTP to 100Base-FX fiber media convertion
    - Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards
    - SC/FC/ST/LC optional
    - DIP switch to set different configurations
    - LFP (Link Fault Pass-through) support
    - Compact package size


    Technical Specifications:

    Data Rates:

    - 10/100/1000Mbps

    (IEEE802.3U IEEE802.3z 1000Base-Tx)

    - 1000Mbps (1000Base-FX) or

    100Mbps (100Base-FX)


    Input Power Requirements:

    - Input voltage ......................................... DC 5-12V

    - Power consume ............................ 3 Watts maximum


    Environmental Conditions:

    - Operating temperature ....................... …0℃ to 40℃

    - Cooling ........................................ free air convection

    - Storage temperature ...................... -20℃ to +85℃

    - Operating Humidity …... 90% max, non-condensing

    Mechanical Specifications:

    - Case Material……………….…………………..Iron

    - Case Color…………………………………….Black

    - Net Weight………...…………….150g approx. / unit

    - Dimensions………...60 (W) x 20 (H) x 90 (L) (mm)

    Do not include transceiver length


    Order Information

    Model NumberPort Description
    FR-2201Mini 10/100Base-TX to 100Base-FX Media Converter
    FR-2203Mini 10/100/1000Base-TX to 1000Base-FX Media Converter
    FR-2206Mini 2x10/100/1000Base-TX to 100/1000Base-FX Media Converter
    FR-2208Mini 125M~1.25GBase-FX to 125M~1.25GBase-FX Media Converter

    Warranty : 2 years hardware warranty


    *Specifications subject to change without notice.
