Gigabit Ethernet Managed PoE Switch , 8x10/100Base-TX + 2x1000Base-FX SFP / 8xPoE

    Buy cheap Gigabit Ethernet Managed PoE Switch , 8x10/100Base-TX + 2x1000Base-FX SFP / 8xPoE from wholesalers

    Buy cheap Gigabit Ethernet Managed PoE Switch , 8x10/100Base-TX + 2x1000Base-FX SFP / 8xPoE from wholesalers
    • Buy cheap Gigabit Ethernet Managed PoE Switch , 8x10/100Base-TX + 2x1000Base-FX SFP / 8xPoE from wholesalers
    • Buy cheap Gigabit Ethernet Managed PoE Switch , 8x10/100Base-TX + 2x1000Base-FX SFP / 8xPoE from wholesalers
    • Buy cheap Gigabit Ethernet Managed PoE Switch , 8x10/100Base-TX + 2x1000Base-FX SFP / 8xPoE from wholesalers

    Gigabit Ethernet Managed PoE Switch , 8x10/100Base-TX + 2x1000Base-FX SFP / 8xPoE

    Ask Lasest Price
    Brand Name : Fiberroad
    Model Number : FR-5M2208P
    Certification : CE FCC
    Price : Pls send request details
    Payment Terms : T/T, Western Union
    Supply Ability : 5000pcs/Month
    Delivery Time : 2-3 workdays
    • Product Details
    • Company Profile

    Gigabit Ethernet Managed PoE Switch , 8x10/100Base-TX + 2x1000Base-FX SFP / 8xPoE

    Gigabit Ethernet Managed PoE Switch, 8x10/100Base-TX + 2x1000Base-FX SFP / 8xPoE


    FR-5M2208P is a new generation Power over Ethernet Managed switch with 8-Port 10/100Base-TX and 2-Port 1000Base-FX Fast SFP that provide stable and reliable Ethernet transmission offered by Fiberroad, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.


    Key Features

    - 8x10/100Base-TX RJ45 ports, 2x1000Base-FX Fast SFP ports, 8xPoE
    - Support Auto-MDIX, and full/half duplex self-negotiation mode
    - Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
    - Support 9K bytes giant frame, compatible with various extension protocol
    - 4K MAC address table
    - Support IEEE802.3az energy efficient Ethernet technology
    - Support IPv6 Protocol
    - Electric 4KV surge protection, easy to use in outdoor environment
    - Complete status indicator, working state at a glance
    - Power input polarity protection design, no worry about wrong operation
    - Metal case, no fan design
    - Installation method: DIN trail /Wall mounting

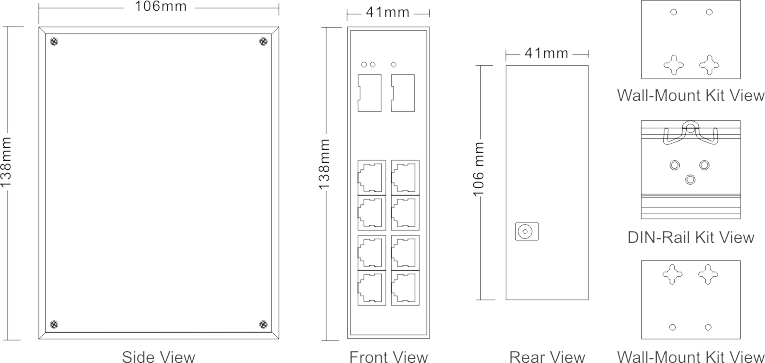

    Dimensions


    Application


    Specification


    Technical Parameter
    ModelFR-5M2208P
    Access Method10/100/1000Mbps
    StandardIEEE802.3, IEEE802.3u,IEEE 802.3af/at
    RJ45 PortAuto-negotiation, 10/100/1000Base-T, Full/Half Duplex, Auto-MDI/MDIX
    Interface Port8* 10/100/1000Base-TX and 2* 1000Base-FX
    Wavelength850nm/1310nm/1550nm

    Distance

    Multi-mode:550Km
    Single-mode: 20/40/60/80/100/120Km

    CAT5:<100m

    Fiber Ports1000BaseFX ports (SC/ST/FC/LC connector, optional)
    Flow ControlFull-duplex and Duplex Back pressure
    MAC address8K
    IndicatorPort link, ring fault/abnormity alarm indication 10M/100M Rate, run indication
    Download Program PortBased serial network management (RS-232), RJ45
    Power Supply

    48V DC (46~50VDC) ,Redundant power input

    Connector: 6 pin terminal

    Overload Current Protection

    Support dual power backup

    Support dual power alarm input

    Operating Temperature0 ~ +50 'C
    Humidity5%~95% (non-condensing)
    Storage Temperature-10~ +70 'C
    Dimension138mm x 106mm x 41mm (L x W x H)
    House ProtectionIP40 protection, Aluminium Alloy
    InstallationDIN-Rail or wall mounting
    Weight600g

    Ordering Information

    Model NumberPort Description
    FR-5M2208PGigabit Ethernet Switch,managed,8x10/100Base-TX + 2x1000Base-FX SFP/ 8xPoE
    FR-5M2208Gigabit Ethernet PoE Switch,managed,8x10/100Base-TX + 2x1000Base-FX SFP
