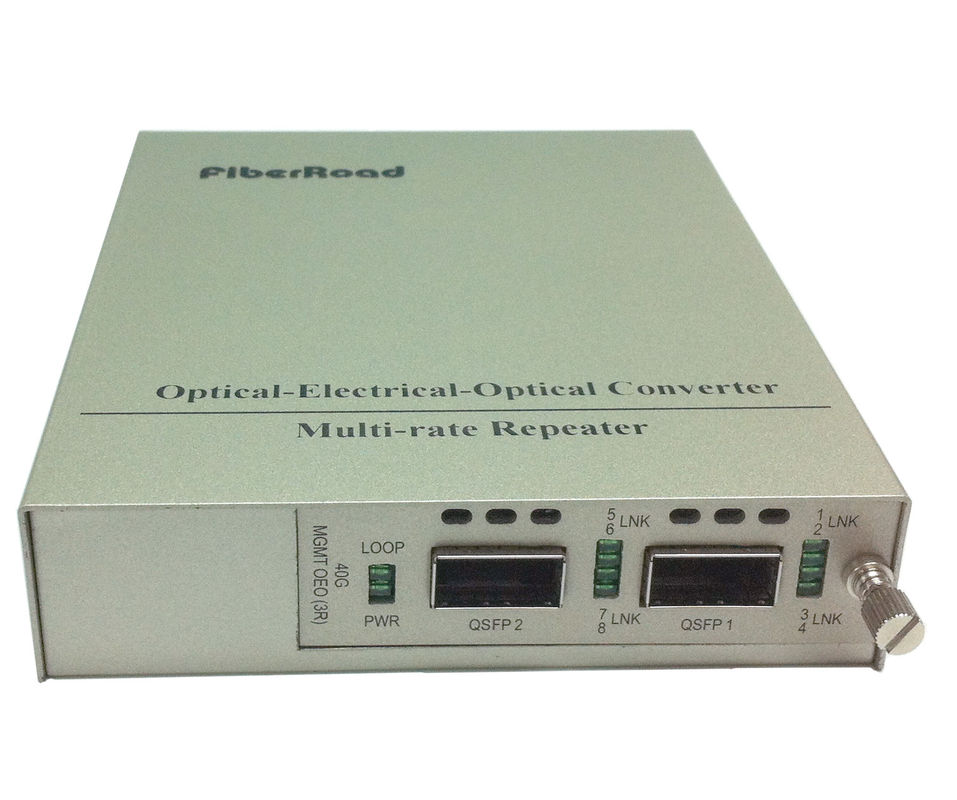

    4 Channel 10G Media Converter for 40G Converter Support Rackmounte Management

    Ask Lasest Price
    Brand Name : Fibrroad
    Certification : CE
    Model Number : FR-OEO-M40G-QS
    Price : Pls send request details
    Delivery Time : 2-3 workdays
    Payment Terms : 100% t/t in advance
    Supply Ability : 5000pcs/Month
    • Product Details
    • Company Profile

    4 Channel 10G Media Converter for 40G Converter Support Rackmounte Management

    4 Channel 10G Media Converter for 40G Converter Support Rackmounte Management


    Quick Details:


    Application:
    media conversion and distance extension for 40G or 10G Ethernet links.
    media conversion (multi-mode to single-mode) and link range extension. (The multi-mode QSFP may be used with MPO MM (40G) or with fan-out cables for quad 10G interfaces.)
    Features:
    •Support 2U Rack(16 Slots) and independent use.
    •Support network management (Web SNMP, Console).
    •3R function.
    •Support Jumbo Frame.
    •Transparent Transpor and very low delay.
    •Support DMI function for QSFP fiber module.
    •Support 1*40G Mode and 4*10G Mode.
    •Support Loopback test function.
    •Support hot plugging.
    •Full State Led display.
    •Easy installation.
    Technical Information:
    Performance Data
    Technical Indexes
    Equipment function
    3R Repeater
    Protocols
    Multiple functions in one module:
    --40G converter/repeater
    --Quad 10G optical multiplexer
    40G link interface
    --Ethernet/IEEE: 802.3ba 40GE-LR4 /SR4
    10G interfaces:
    --9.95 - 11.35 Gbps
    Access Type
    40G Ethernet


    Interface Type
    QSFP To/From QSFP
    Transmission
    Distance
    Up to QSFP module ( Max 10Km )
    Network
    management
    information
    Card type information
    QSFP fiber module DMI function ( Temperature , Voltage Optical power )
    Link status detector
    Enable/Disabled Loopback test function
    Eable/Disable PRBS Generator and checker function
    power requirement
    Rack mountable : AC 85 ~ 220V OR DC -48V dual-supply, optional
    Standalone: AC 220V OR -48V
    Power consumption: ≤8W
    Work Environment
    Operating Temp: 0~ 50 ℃
    Storage Temp: -10~ 70 ℃
    Humidity: 5%~90% (non-condensing )
    Dimension
    Card : 11.5mm (W)× 78mm (D)
    Standalone : 156mm (W)* 128mm (D) * 32mm (H)
